Magnetic ring binder mechanisms DIN A4, 13 mm capacity, 30 mm magnet

Gesamtpreis: 1,857.00 *
Quantity unit Unit price price / piece
To 4 €18.57 * €18.57 * / 1 piece
From 5 €16.68 * €16.68 * / 1 piece
From 10 €16.00 * €16.00 * / 1 piece
From 25 €15.42 * €15.42 * / 1 piece
From 50 €14.39 * €14.39 * / 1 piece
Content: 1 piece

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • P 282 04 13 D 17 M30
  Description: Magnetic ring binder mechanisms, nickel-plated  ... more

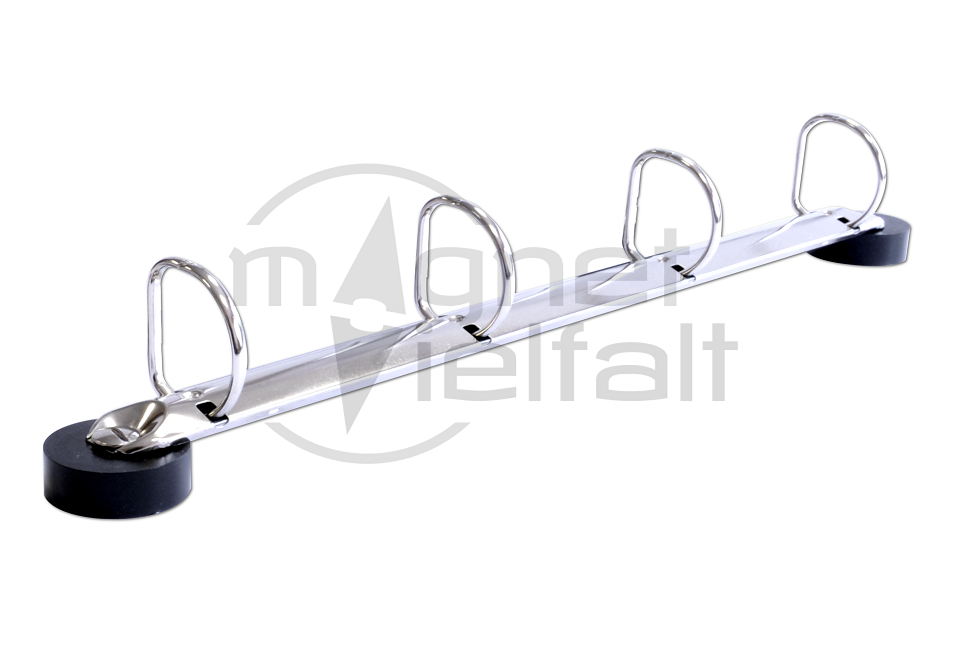

Product information "Magnetic ring binder mechanisms DIN A4, 13 mm capacity, 30 mm magnet"



Description: Magnetic ring binder mechanisms, nickel-plated
  D-Shape
  Total length: 282.0 mm
  Total height: 22.0 mm
  Total width: 20.0 mm
  Width of base: 17.0 mm
  Rivet hole distance: 272.5 mm
  Ring distance: 80-80-80 mm
  Capacity: 13.0 mm
  Wire diameter: 1.8 x 2.55 mm


with 2 gummed magnet feet

  30 mm diameter
  Strength approx 12 kg

Unit: 1 piece

Related links to "Magnetic ring binder mechanisms DIN A4, 13 mm capacity, 30 mm magnet"
Manufacturer: Tidick Ringbuchtechnik GmbH, Karl-Peters-Str. 5, 33605 Bielefeld E-Mail:... more

Manufacturer:
Tidick Ringbuchtechnik GmbH, Karl-Peters-Str. 5, 33605 Bielefeld

E-Mail:
info@tidick.de

Safety Notice

Children:
Magnets are not toys.
The magnets pose a risk of death to small children, who may swallow them.

Danger of crushing:
Neodymium magnets are powerful magnets.
You may bruise your skin if it is caught between the magnet and a metal object.

Working with the magnets:
Neodymium magnets are very difficult to work and may break apart when machined.Magnets must not be soldered or welded. The NdFeB material is highly flammable.

Colliding magnets:
Neodymium magnets may break if they collide or fall to the ground. The slivers of magnet normally have sharp edges.

Technical equipment:
Powerful permanent magnets can damage technical equipment and storage media. People with pacemakers or a defibrillator are particularly at risk.

Allergies:
Neodymium magnets are typically nickel-plated.

Heating:
If neodymium magnets are heated above 80C, they lose their magnetic effect.
